• GD&T and Profile Measurement

    Fabricated parts normally differ from the design model. The question is how narrow the actual geometry is compared to the desired design. This is where geometric dimensioning and tolerancing (GD&T) comes handy. GD&T eliminates the need of arduous measurements and calculations. The IM Series has a full suite of GD&T applications to give you assurance that the parts you receive or produce is within specification.

    The IM-7000 Series

    • Measure All 2D and GD&T Profile Features Instantly
    • Automatically Record Data and Generate Inspection Reports
    • Zero Operator Subjectivity
    • Fast, Accurate, and Easy-to-Use
    • Full GD&T applications included

    The IM Series also covers the basics & advanced functionalities of GD&T calculations and verification. Save the hassle of training a skilled user.
    For more information download the brochure.
  • What is the KEYENCE IM Series?

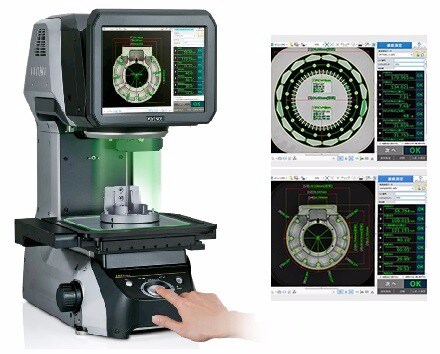

    The IM Series is a profile measurement system that instantly checks all part 2D and GD&T profile measurements at the push of a button. It is fast, accurate and easy-to-use allowing anyone, anywhere the ability to check a part in just 3 seconds.

  • Limitless Applications, Unmatched Ease-of-Use

    The IM Series is suitable for all measurement applications. Whether you are looking to measure several profile features on a 2D application or have a GD&T profile call out on a part, the IM Series can measure it all at the push of a button.

For more information please download the brochure.
