Battery Wiring Detection
Industry
Electrical and electronic parts industry
Advantages
Pokayoke (prevention of mistakes)
Detection details
Sensors are used in the battery assembly process during the transferring of batteries to check whether wiring is attached to the batteries, helping to eliminate mistakes.

Judgement details

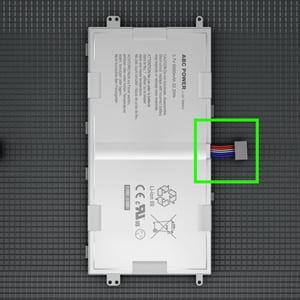

  • OK
    OK

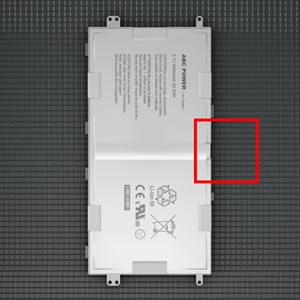

  • NG
    NG

Key installation points

Conventionally, position adjustment was difficult and false detections sometimes occurred in the detections of narrow or small targets.
The IV2 Series detects the entire surface of the target. No matter how narrow or small the target, it can be detected so long as it is within the field of view.
Furthermore, when performing difference checks according to the colour, the target's colour can be set just by tapping it on the screen. Anyone can easily perform the steps from setup to difference check.
