LED Lighting Vision System Peripheral Equipment CA-D Series

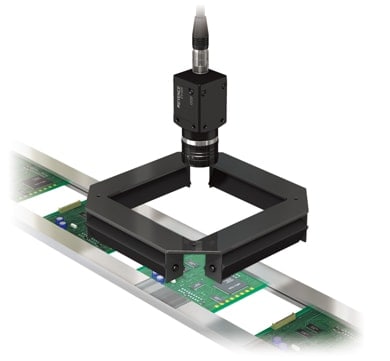

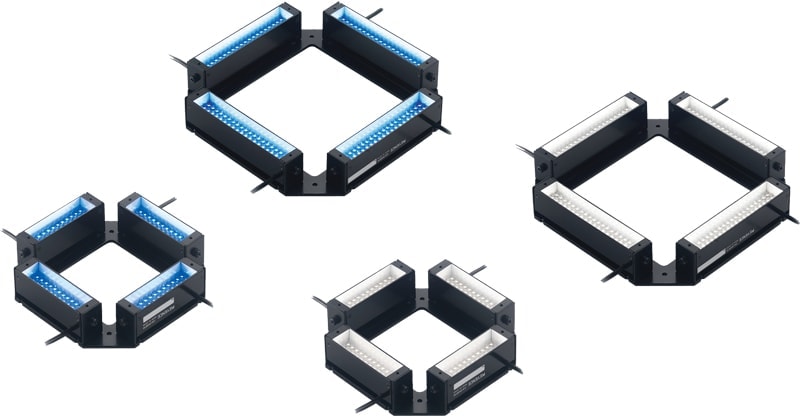

Square Lights (Direct)The square lights are made up of four bars lights, which can be individually controlled and positioned.
Inspection of sealant
The presence/absence of sealant can be checked across the whole target area. By adjusting the installation distance and alignment the whole target can be uniformly lit.

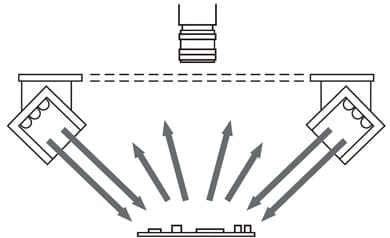

Square light illumination techniques
Using four bar lights in a square arrangement allows for adjustment in four independent directions. Optimal lighting according to the target profile can be set to highlight and extract specific characteristics.

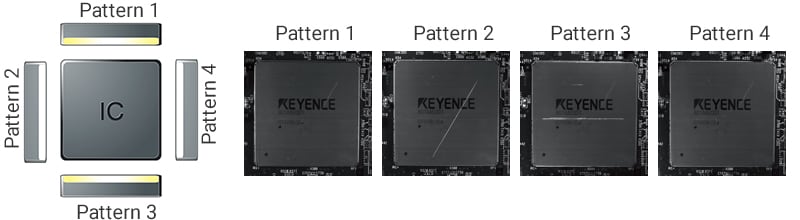

IC surface flaw
By switching through different patterns of lighting a surface flaw can be easily highlighted and detected.
