These easy-to-use sensors can be used in a large variety of diverse applications such as highly accurate positioning and product type difference checking.
Products Lineup : Contact Positioning Sensors

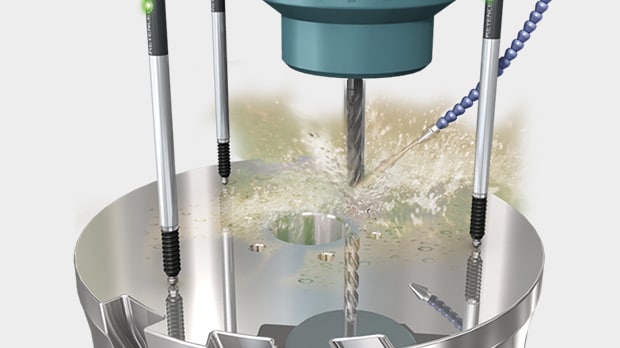

IP67G Oil-Resistant Design for Measurement in Machine Processing and Other Oily Environments
The sensor head - including the connector and cable section - are IP67G and NEMA Type 13 compliant. This means that stable measurement is achieved even in harsh environments containing splashing water or oil. In order to improve robustness - a common problem with contact sensors - careful attention was paid to the structure of the sensor body. The design incorporates a high-strength linear ball bearing and a seamless body for additional durability. In addition, the reduced weight of the spindle means minimal wear from friction and significantly improved durability. These design improvements reduce maintenance and equipment downtime.
Disc assembly inspection
Choose from 29 Different Head Variations

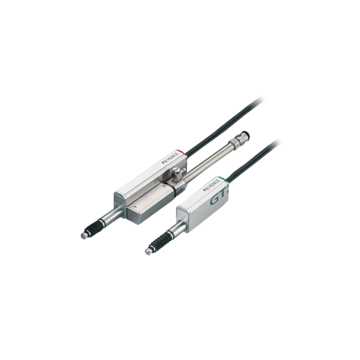

The GT2 Series is available in a wide range of heads, including pencil, air, and low-speed pressure types. Choose a design most suitable for the application.
Tough and rugged general purpose digital contact sensor with push button calibration.
Products Lineup : Reflective Positioning Sensors
Sharp-Line Sensor Heads
Introducing a new high-performance head for the IL Series Stable performance for the most demanding detection
The multi-function amplifier with an all-in-one design
Tough, Reliable, Repeatable Laser Measurement Simplified. KEYENCE brings you an economical analogue laser sensor.
Products Lineup : Thrubeam positioning sensors
Easy to Use
The position monitor makes it easier to align the optical axis. Easily perform optical axis alignment by adjusting the sensor head so that all of the position monitor lights turn red.
The enclosure satisfies the IP67 rating based on the IEC standards and remains watertight even after being held at a depth of one meter for 30 minutes. The enclosure is resistant to adverse environments and offers long-term durability.
The intelligent I-Series consists of a high-accuracy sensor lineup that realises low-cost high performance with only the most advanced functions for on-site operations.

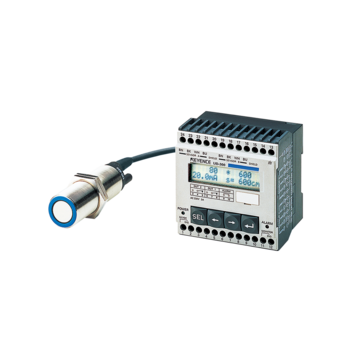

Products Lineup : Ultrasonic / Level Sensors

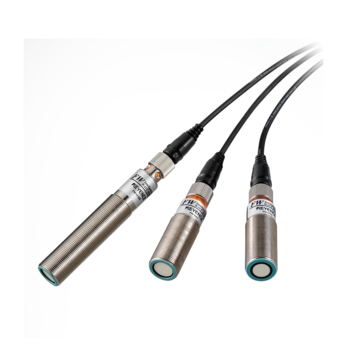

Introducing the FW Series, a tough, super multi-reflective sensor unaffected by a target's material, color, or luster.
Can be used for all types of targets

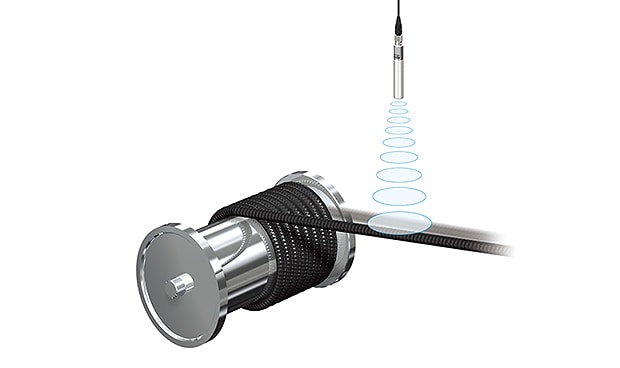

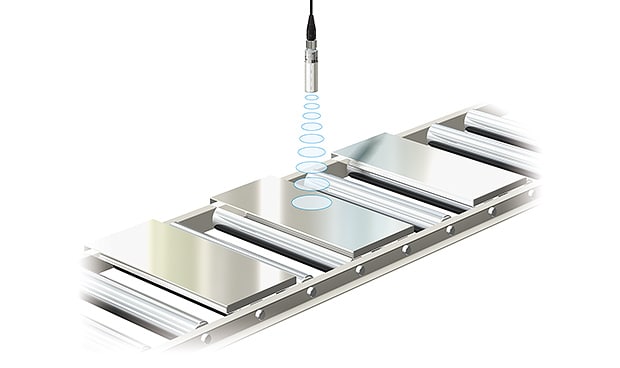

The FW Series easily detects metal, glass, liquid level or other targets that have been difficult to detect with reflective-type photoelectric sensors. Also, the detections are not influenced by the color, pattern, or luster of the target surface.
High stability and reliability
A new algorithm A.W.S. (Active Wave Stabilizer)* stabilizes detection while avoiding the influence of target vibration or external disturbances.
