Photoelectric Sensors

Laser sensors are used for detecting presence based on position or light intensity. Benefits include long range, a visible beam spot, and precise detection. These devices have a small footprint and have options to withstand the most demanding environments.

Download Catalogues

Include Discontinued Series

Photoelectric Sensors

Digital CMOS Laser Sensor LR-X series

The LR-X Series is a remarkably small laser sensor capable of detecting targets based on position and is unaffected by colour, surface finish, or shape. Impressive durability is achieved with its food-grade stainles steel housing (SUS316L), high IP ratings, and guarded cable. Position changes as small as 0.5 mm are possible, along with automatic and real-time intensity adjustment to ensure stable detection on any target.

Catalogues Get Pricing

Features

Compact & Robust Design for Use Anywhere

Whether building a new machine or retrofitting an older one, the ultra-compact size of the LR-X Series makes it easy to integrate into any space. The metal housing and rugged design also ensure it will last in any environment.

Stable Detection of Any Target
Minimum Detectable Position Change: 0.5 mm

The LR-X Series detects targets based on position, not light intensity. This allows for stable detection of targets regardless of colour, surface finish, or shape. This allows the LR-X Series to be used in a wide variety of applications, including those with small position changes.

Shiny Metals

Rounded Surfaces

Black/Dark Targets

Varied Colours

Angled Targets

Self-contained TOF Laser Sensor LR-T series

The LR-T Series of reflective sensors represents a seamless fusion of innovative technology and robust functionality.

Catalogues Get Pricing

Features

Superior Detection Capabilities

Superior Detection Capabilities

The LR-T is designed to detect at long ranges while remaining highly stable. This is achieved due to the HS2 technology used, a combination of Time of Flight detection and a custom integrated circuit. Additionally, the interference prevention and Datum Function allow users to maximize this sensors capability in any situation.

Easy to Use

Easy to Use

The LR-T Series is simple to install and calibrate. Flexible mounting options, a visible beam spot, push button teach, and an easy to read display allow for quick setup. Even at long distances, constant feedback is provided with the LR-T's highly visible status indicator.

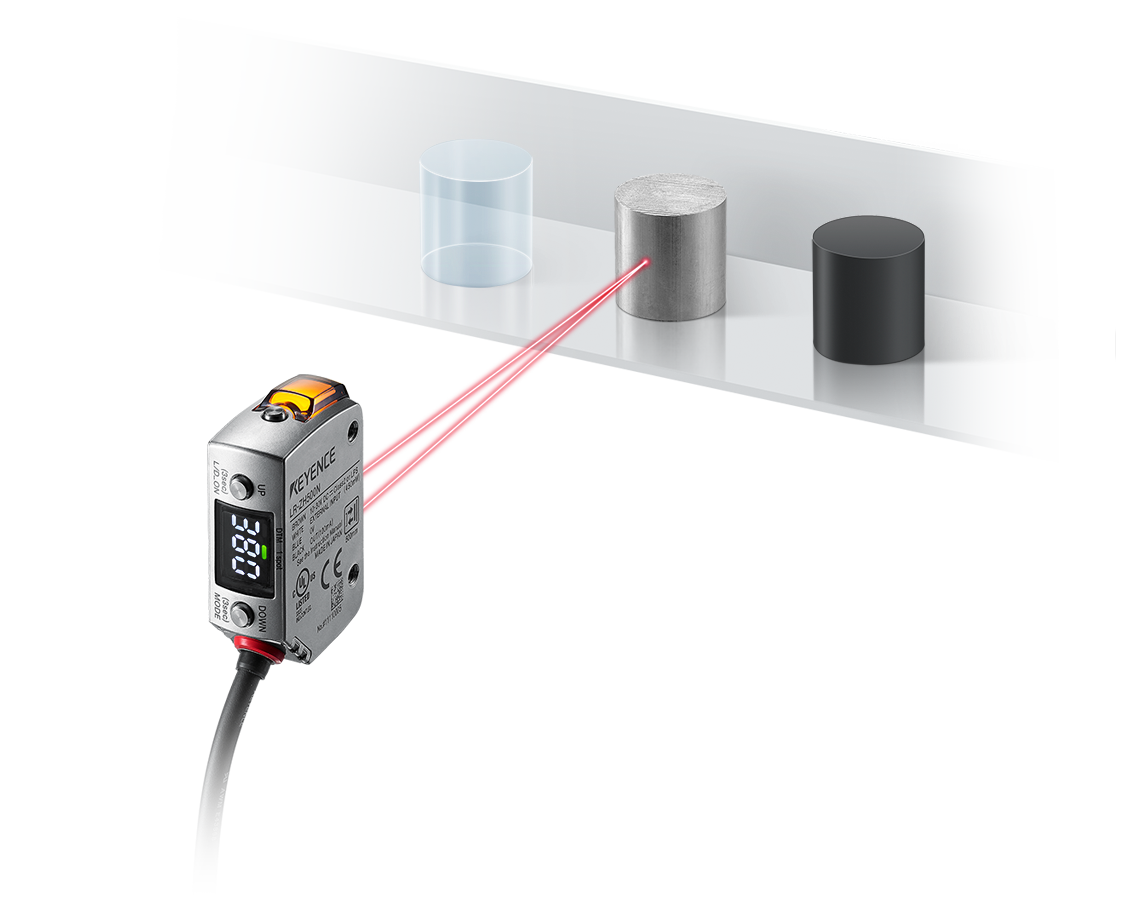

Self-contained CMOS Laser Sensor LR-Z series

Detection is often difficult with reflective sensors for a variety of reasons, including target colour, material, surface finish, and environment. In order to solve these issues, the stability of a CMOS laser has been combined with the versatility of a self-contained sensor in a heavy duty metal body to create a more stable and user friendly general purpose sensor.

Catalogues Get Pricing

Features

I-DATUM

Best Detection Ability in its Class

The LR-Z Series provides highly stable detection and a wide array of uses. By using CMOS technology and a Light Power Control Function, the LR-Z's detection ability is not affected by target color, surface finish, or shape the way a conventional sensor can be.

Durable & Long Life

The IP68/69K rating means the LR-Z is ready for the roughest of factory environments. Wash-down, oil spray, and many corrosives are no match for the stainless steel body. Additionally, physical impact or even overtightening are not a concern because of the highly durable design.

Built-in amplifier photoelectric sensors PZ-G series

High-power, dual LED-type photoelectric sensors for improved performance and ease of use.

Catalogues Get Pricing

Features

Complete Lineup of Self-Contained Photoeyes

Complete Lineup of Self-Contained Photoeyes

Reflective, Retro-Reflective and Thrubeam (breakbeam) types are all available in the PZ-G Series. These sensors have the power to blast over 130 ft and the sensitivity to detect even clear targets.

Easy to Use

Easy to Use

Simple trimpot calibration and light-on/dark-on capabilities are built into each PZ-G. Additional features like built-in alignment indicators make the PZ-G series very easy to use.

Built-in amplifier photoelectric sensors PZ-V/M series

Automatic calibration type. Virtually eliminates all detection and stability problems inherent with conventional photoelectric sensors.

Catalogues Get Pricing

Built-in amplifier photoelectric sensors PZ2 series

The PZ2 series micro-optical sensors with built-in amplifiers are small, waterproof, and have the ability to detect transparent objects.

Catalogues Get Pricing

Built-in amplifier photoelectric sensors PZ-101 series

Self-contained, Long-distance, Small-spot Photoelectric Sensor with visible light

Catalogues Get Pricing

Amplifier Separate Type Photoelectric Sensor PS-N series

High environmental resistance & cable extension capabilities provide increased installation versatility

Catalogues Get Pricing

Features

Sensitivity Setup and Display Standardisation at the Touch of a Button

Easy configuration

By standardising the received light intensity display of multiple sensors to “100” and “0”, it is easy to tell where an error has occurred because the sensor will not return to the original display value of “100” or “0”.

The sensor where the error occurred is identifiable at a glance.

Electric Wire Cable Allows for Rejoining

Because the sensor head cable is a simple power cable, it can be extended to the desired length. By soldering or using a metal connector, it can be extended to a maximum of 10 m (32.81').

Joining fibreoptic sensors

The light intensity is attenuated by approximately 90% at the joining surface.
With the PS-NEO, no light attenuation occurs even when cables are rejoined.

Heavy-duty Photoelectric Sensors PX series

The new PX Series heavy-duty industrial photoelectric sensors. Rugged industrial sensors designed for use in harsh environments.

Catalogues Get Pricing

Features

Water-resistant and Oil-resistant IP68G/IP69K Structure

Outstanding resistance to harsh environments thanks to the new "vacuum packed" structure

The sensing heads are completely backfilled under vacuum with transparent epoxy resin. This ensures maximum adhesion with the cable and lens, and eliminates the risk of liquid penetration.

Impressive Thrubeam Strength

High-power MEGA mode

Using the high power MEGA mode, the PX family can operate reliably up to 40 m. In addition to long distance detection, the high power of the PX easily penetrates oil, grease, dust, dirt and other obstructions.

Confirming constant presence of an engine block

Amplifier Separate Type Photoelectric Sensor PS-T series

Separate amplifier photoelectric sensors employing a variety of sensor heads; including ultra-thin compact and chemical-resistant variations.

Catalogues Get Pricing

Amplifier Separate Type Photoelectric Sensor PS series

Separate Amplifier Photoelectric Sensor with head variation

Catalogues Get Pricing

Amp.-in-Photoelectric Sensors PQ series

Compact, More space-saving Amplifier-in-cable Photoelectric Sensor

Catalogues Get Pricing

Multi-voltage power supply,built-in amp.photoelectric sensors PW series

AC/DC Multi-power Supply Photoelectric Sensor

Catalogues Get Pricing

Optical Passage Confirmation Sensors PG series

Quick Response Sensor detecting φ0.5 mm

Catalogues Get Pricing

Expandable Area Sensor PJ series

Low cost type of expandable area sensor

Catalogues Get Pricing

Colour Sensors

Self-Contained Full-Spectrum Sensor LR-W series

This Full-Spectrum sensor features unmatched detecting capabilities that allows it to complete the simplest to the most complex applications with ease.

Catalogues Get Pricing

Features

Innovative Technology

The unique technology in the LR-W series allows it to analyse the full light spectrum. This series can detect everything from surface finish differences to colour changes that are hard to see with the naked eye.

Flexibility

The LR-W features a 500 mm range, an adjustable beam spot, and high enclosure ratings. This allows the LR-W to solve more applications than any conventional photoelectric sensor.

Digital RGB Sensors CZ-V20 series

Simple one-touch calibration with a dual digital display and ability to store up to 8 colours. Colour, lustre and fluorescent/UV sensing heads all connect to CZ-V20 Series amplifier.

Catalogues Get Pricing

Features

Detect only specified differences in appearance

The CZ-V20 Series uses a completely different detection principle than other photoelectric sensors. This allows for incredibly stable, high-accuracy colour confirmation and detection of lustre, fluorescence/UV. Each of which are often unstable with conventional photoelectric sensors.

General-purpose photoelectric sensors

False-detection of areas that are not red

CZ-V20 Series

Detection of red areas only

Detect slight colour differences not easily recognised

The CZ-V20 Series enables high-accuracy colour differentiation with the ability to save up to 8 targets.

Colour difference detected

No colour difference detected

RGB Digital Fibreoptic Sensors CZ series

Digital, RGB fibre optic sensor with 2-colour digital display and 3 sensing modes. Detects targets conventional sensors cannot.

Catalogues Get Pricing
