Surface inspection of battery housings
The vision system can inspect the surface of battery housing.

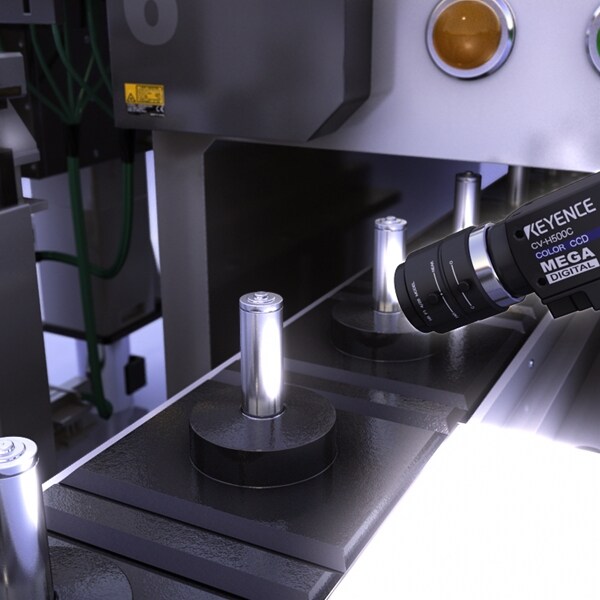

A backlight is positioned on the bottom of the housing to light the side the target while the camera acquires the image at an angle. Shade variations from to the curved surface of the housing are cancelled with the real-time Shade Correction filter allowing for only the flaws to be detected.
- Benefit
-
Conventional defect detection tools cannot eliminate the influence of glare on the surface of a target resulting in false rejects of parts. The XG Series Real Time Shade Correction filter removes glare and shade gradations on the housing surface in order to detect only the dents and flaws as defects.
LEARN THE DETAILS OF THE PRODUCT
- XG-7000 series
Customizable Vision System -
The XG Series offers standard programming directly with the controller or advanced programming using the optional Vision Editor PC software.
- XG-7000 series
- CV-X series
Intuitive Vision System -
High Performance, Icon-driven system with easy-to-use tools for simple setup by any user.
- CV-X series
- CV-5000 series
Intuitive Vision System -
The CV-5000 Series has the largest number of camera types for its class, letting you select the optimum camera for a wide range of applications.
- CV-5000 series
- CV-3000 seriesDiscontinued
Intuitive Vision System -
Providing the ultimate flexibility with a wide variety of camera choices using the industry's highest-performance image processing engine.
