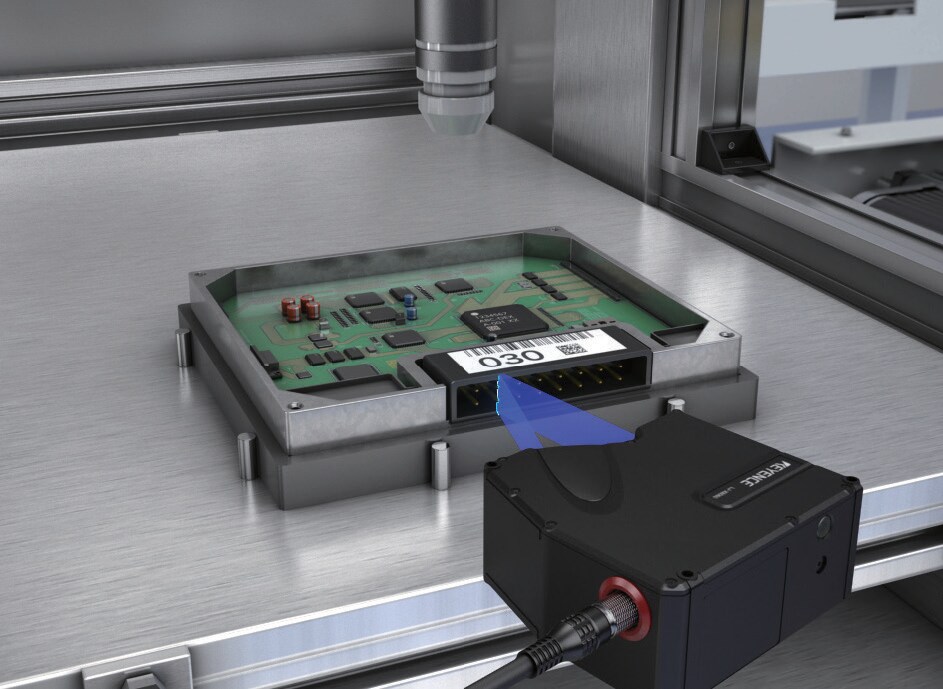

Measurement of the position and projection of connector terminals

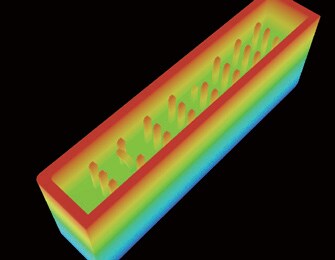

Check the position and projection of terminal tips located in the deep recess of a connector. Conventionally, the combination of a vision sensor and a contact sensor was used. A single LJ-X Series unit can perform all inspections simultaneously.
